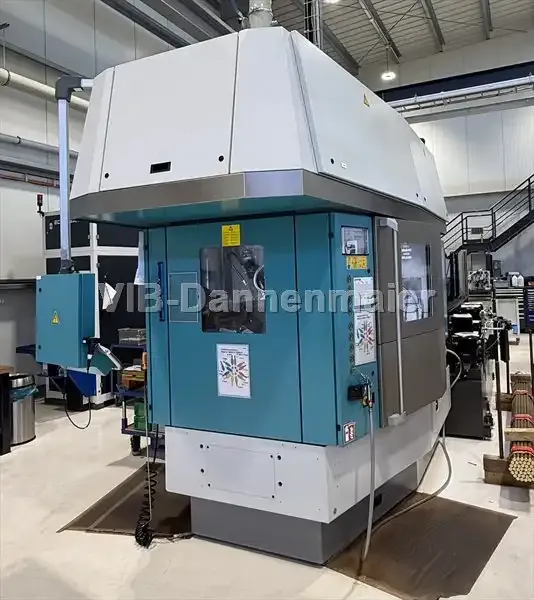

Index MS 40-6
 (2).jpg)
 (6).jpg)
 (4).jpg)
-
ProducerINDEX
-
ModelMS 40-6
-
Diameter40 mm
-
Year2023
-
Conditionvery good
-
Price
Important data at a glance
-
Type
Multi spindle machines -
Location
-
Country of origin
Germany -
Coolant
Öl -
Control
Index C200-SL mit Doppel-NCU -
VIB-Nr
01-29349

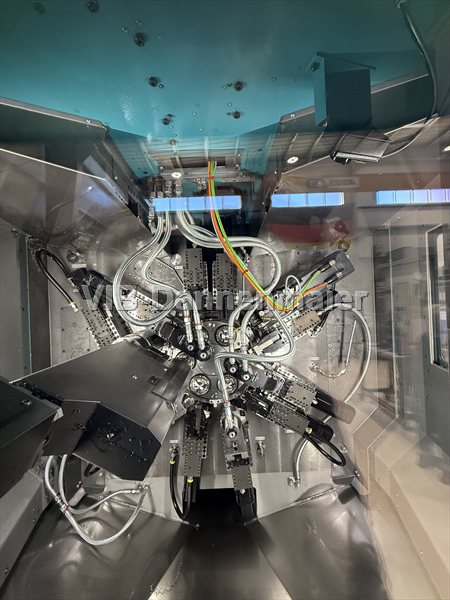

Description
- Double NCU
- Slide unit 1.1: X-axis and Z-axis NC-controlled
- Slide unit 1.2: X-axis and Z-axis NC-controlled
- Slide unit 2.1: X-axis and Z-axis NC-controlled
- Slide unit 2.2: X-axis and Z-axis NC-controlled
- Slide unit 3.1: X-axis and Z-axis NC-controlled
- Slide unit 3.2: X-axis and Z-axis NC-controlled
- Slide unit 4.1: X-, Y- and Z-axis NC-controlled. Y-axis adjustment range: +/- 21 mm
- Slide unit 4.2: X-axis and Z-axis NC-controlled
- Slide unit 5.1: X-, Y- and Z-axis NC-controlled. Adjustment range Y-axis: +/- 21 mm
- Slide unit 5.2: X-axis and Z-axis NC-controlled
- Slide unit 6.1: Swivel axis and Z-axis NC-controlled
- Synchronization device position 6.1
- Slide unit 6.2: X-axis and Z-axis NC-controlled
- Slide unit 6.3: X-axis NC-controlled, Z-axis rigid

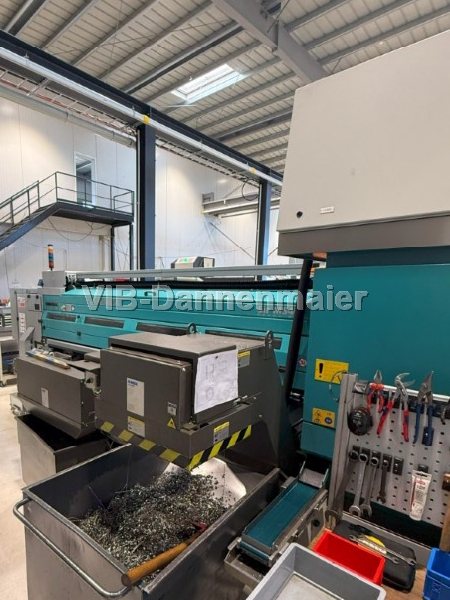

- IEMCA SIR MS40-6/33/F (bundle loader)
- Hinge belt chip conveyor
- Vacuum rotary filter
