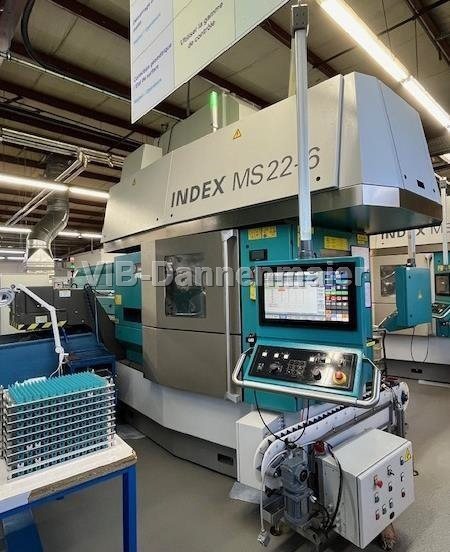

Index MS 22-6

  • Producer
    INDEX
  • Model
    MS 22-6
  • Diameter
    22 mm
  • Year
    2019
  • Condition
    very good
  • Price
    Request price

Important data at a glance

Description

The used INDEX MS22-6 multi-spindle turning machine stands for maximum productivity for precision parts with a bar diameter of up to 22 mm. Six air-cooled motor spindles with 10,000 rpm, up to two swiveling synchronous spindles, and 11 tool carriers in XYZ enable complex machining operations, including milling and cross drilling, in minimal cycle times. The front-open work area with hydrostatic Z-axes and free chip fall minimizes setup times while offering optimum accessibility. For buyers and production managers: proven INDEX technology made in Germany – maximum quantities with top quality and low follow-up costs.

  • 6-spindle
  • Double NCU
  • Slide unit 1.1: X-axis and Z-axis NC-controlled
  • Slide unit 1.2: X-axis and Z-axis NC-controlled
  • Slide unit 2.1: X-axis and Z-axis NC-controlled
  • Slide unit 2.2: X-axis and Z-axis NC-controlled
  • Slide unit 3.1: X-axis and Z-axis NC-controlled
  • Slide unit 3.2: X-axis and Z-axis NC-controlled
  • Slide unit 4.1: X-axis, Y-axis, and Z-axis NC-controlled. Y-axis adjustment range +/- 21 mm
  • Slide unit 4.2: X-axis and Z-axis NC-controlled
  • Slide unit 5.1: X-axis and Z-axis NC-controlled
  • Slide unit 5.2: X-axis and Z-axis NC-controlled
  • Slide unit 6.1: Swivel axis and Z-axis NC-controlled
  • Slide unit 6.2: X-axis and Z-axis NC-controlled
  • Slide unit 6.3: X-axis and Z-axis rigid
  • Synchronization device position 6.1
  • Electronic preparation for two additional drives at positions 4, 5, 6
  • High pressure 80 bar
  • Artis tool monitoring
  • IEMCA Sir-MS 22/33/P - loading magazine
