INDEX ABC 65

  • Producer
    INDEX
  • Model
    ABC 65
  • Diameter
    65 mm
  • Year
    2007
  • Condition
    good
  • Price
    Request price

Important data at a glance

Description

The used INDEX ABC 65 automatic production lathe is a compact, high-performance machine for economical series production of bar and chuck parts up to 65 mm in diameter. Two tool carriers with up to 19 tools, driven stations, and a synchronous spindle enable complete machining in a single setup with short cycle times. The INDEX C200-4D control system based on Siemens 840D supports fast setup, stable processes, and reproducible quality—ideal for demanding supply companies.

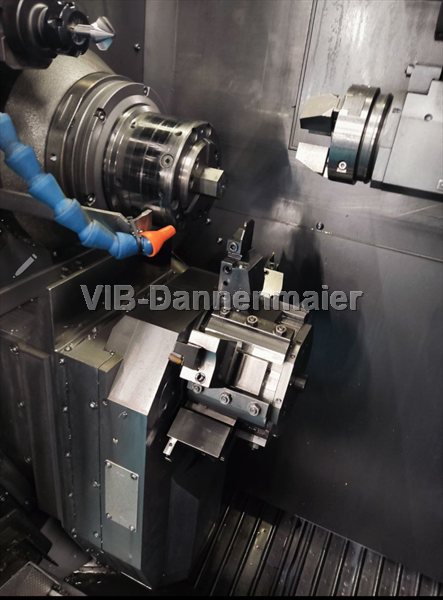

  • Main and counter spindle

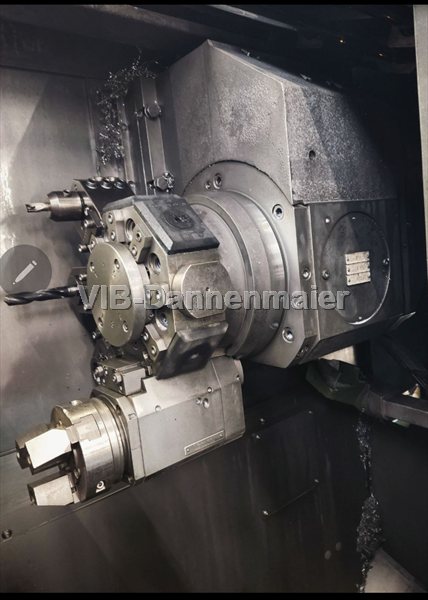

  • 2 turrets
  • C-axis on the main spindle
  • Synchronous spindle chuck holder
  • 5 rear boring stations, 2 of which are driven
  • Chip conveyor

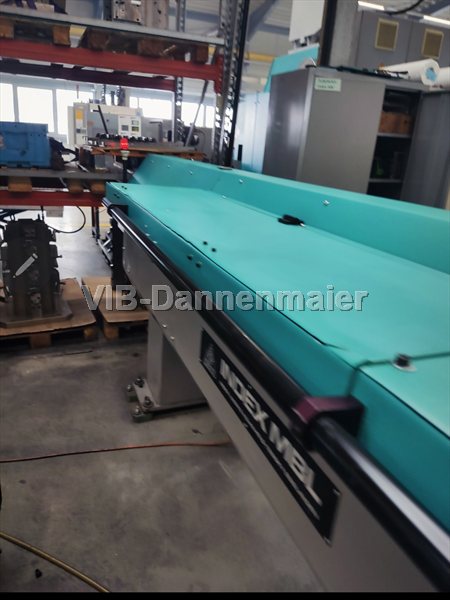

  • MBL magazine for bar lengths of 3.7 m
