Gildemeister N.E.F. Plus 500

  • Producer
    Gildemeister
  • Model
    NEF Plus 500
  • Diameter
    500 mm
  • Year
    1999
  • Condition
    fair
  • Price
    Request price

Important data at a glance

Description

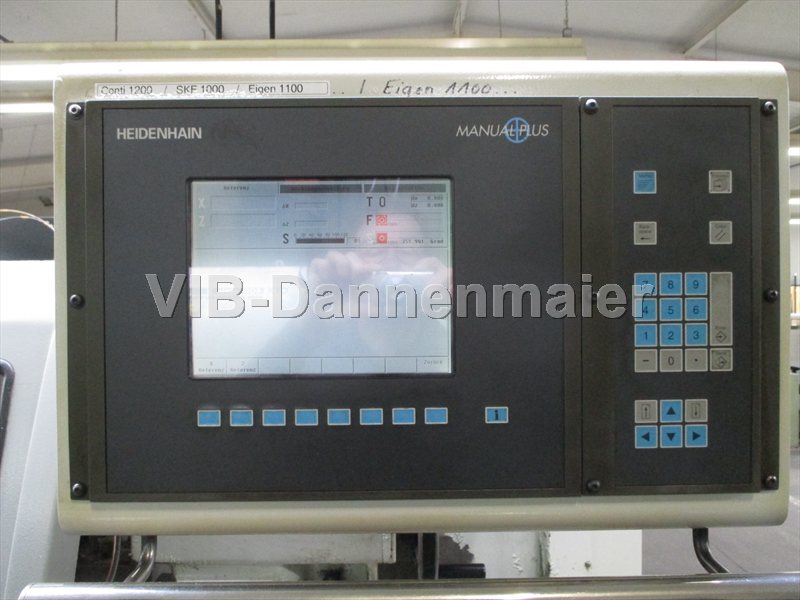

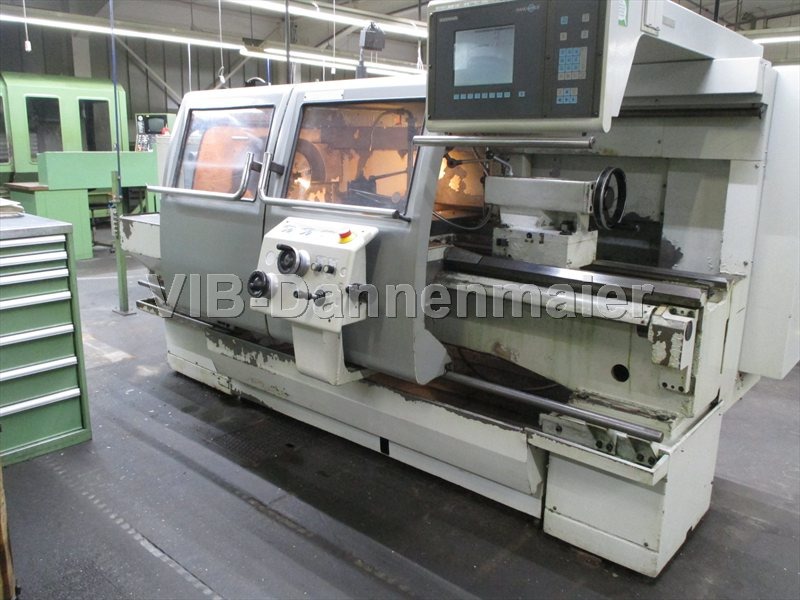

The used GILDEMEISTER N.E.F. Plus 500 CNC turning center is a proven solution for the precise machining of shafts and chuck parts with a swing diameter of up to 500 mm over the bed. With a Z-axis stroke of up to 1,000 mm, a spindle bore of 70 mm, speeds of up to 2,800 rpm, and 11 kW of drive power, the machine can handle demanding turning work on steel, aluminum, and cast iron. The Heidenhain Manual Plus control ensures intuitive operation and high repeat accuracy in series production.

  • Completely overhauled by Gildemeister Bielefeld in 2010.
  • Turning diameter 500 mm.
  • Travel diameter over cross slide Ø 290 mm.
  • Turning length 1,500 mm.
  • Speed range 8 - 2,800 rpm with three gear stages.
  • Spindle bore approx. Ø70 mm
  • Three-jaw chuck Ø 250 mm, Röhm
  • Tailstock quill MK4
  • Quill stroke 180 mm

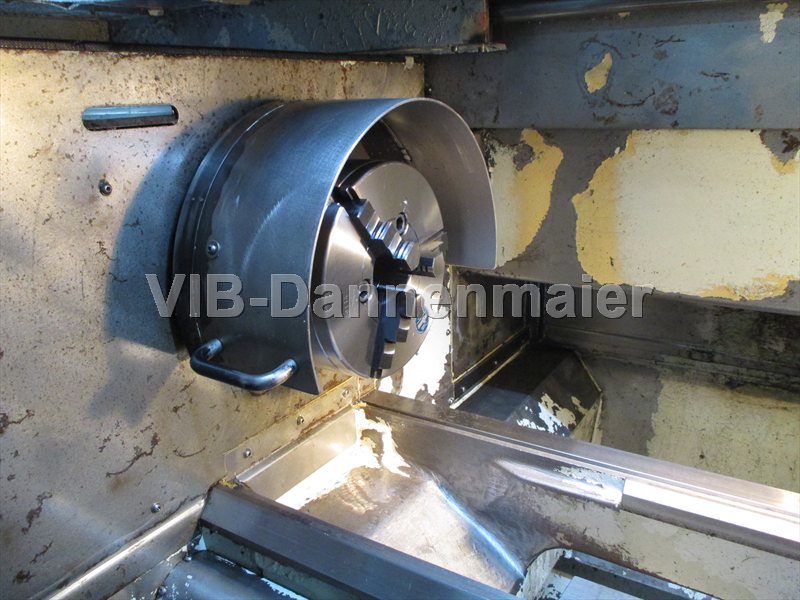

  • Protective cover for chuck
  • Coolant device

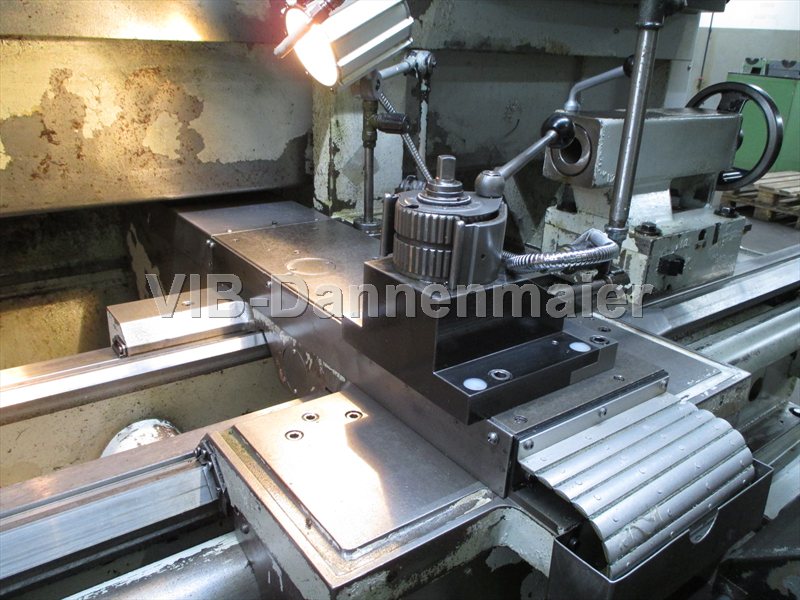

  • Multifix tool holder
  • Dimensions 3,200 x 1,700 x 1,800 mm
  • Weight approx. 3,200 kg
  • Mains voltage 400 V at 50 Hz
  • Total connected load 24 kVA
  • Various tool holders
  • Various drill chucks
  • Various turning and drilling tools
  • Interchangeable beacons for three-jaw chuck
  • Depth stop for main spindle
  • Tool cabinet
  • Documentation
