Traub TNL 32-7B

  • Producer
    Traub
  • Model
    TNL 32-7B
  • Diameter
    32 mm
  • Year
    2014
  • Condition
    good
  • Price
    Request price

Important data at a glance

Description

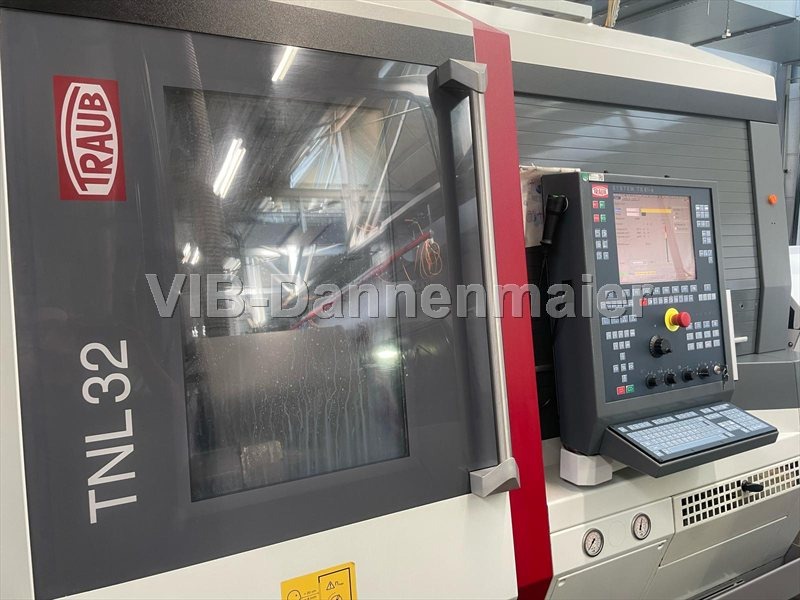

The used TRAUB TNL 32-7B CNC sliding headstock automatic lathe is designed for the economical production of complex precision parts with a bar diameter of up to 32 mm. Two NC rotary turrets with a total of up to 27 tool positions, powerful tool drive, and optional B-axis enable simultaneous machining with multiple tools and very short chip-to-chip times. Synchronous main and counter spindles, switching between long and short turning modes, and the TRAUB TX8i-s control ensure high process stability and reproducible quality in series production.

  • C-axis

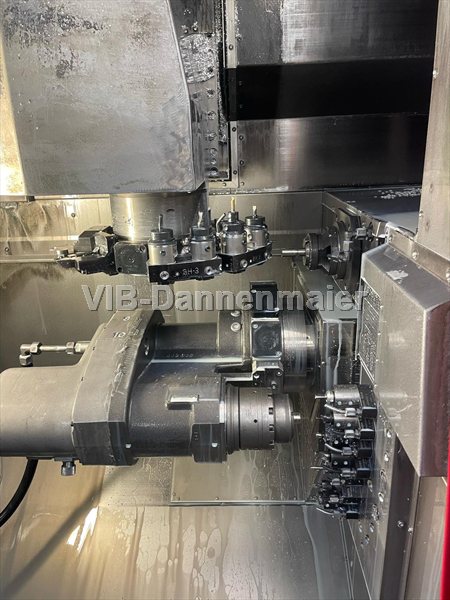

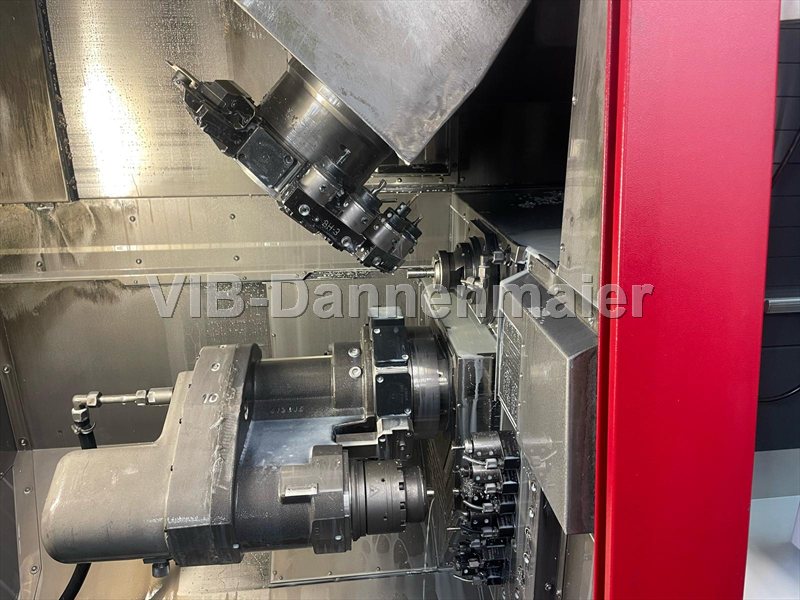

  • Upper tool turret with X/Y/Z/H-axis with 10 tool holders
  • Lower tool turret with X/Y/Z/H-axis with 9 tool holders
  • Rear unit with 8-fold total drive for 3 tools
  • Hinged belt conveyor
  • Resy paper belt filter
  • Traub tool monitoring

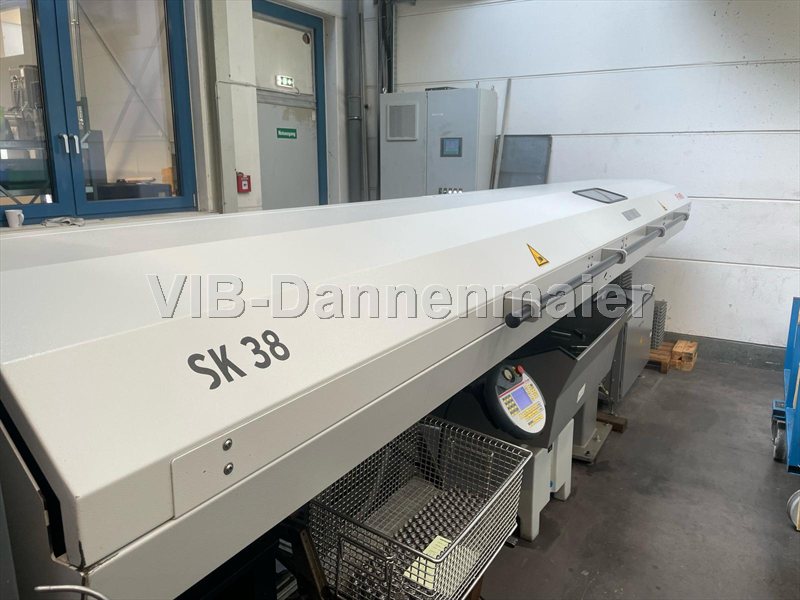

  • FMB LSK 38 loading magazine
