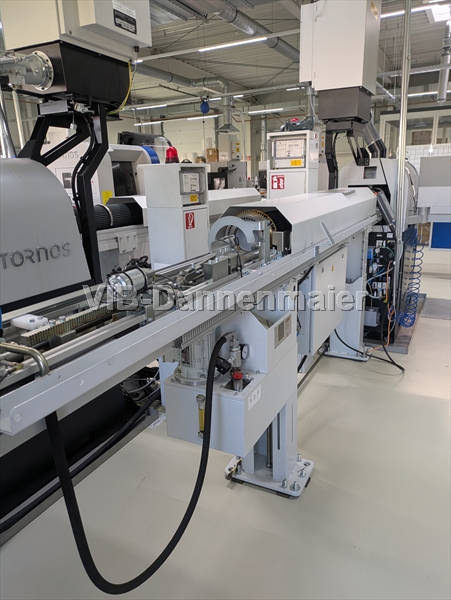

Tornos Swiss Nano 4

  • Producer
    Tornos
  • Model
    Swiss Nano 4
  • Durchmesser
    4 mm
  • Year
    2018
  • Condition
    good
  • Price
    Request price

Important data at a glance

Description

The used Tornos SwissNano 4 is specifically designed for high-precision micro-parts with bar diameters up to 4 mm and reliably maintains process tolerances within ±0.001 mm. Six linear axes, two C-axes, and up to 15 tools—five of which are driven—enable turning, milling, gear hobbing, and polygon turning in the tightest of spaces. Thanks to intelligent thermal management, a turbo mode that boosts productivity by up to 40%, and a power consumption of just 6 kVA, the machine operates stably and with exceptional efficiency. VIB positions itself as a specialist in Swiss-type technology and provides expert guidance on the selection, commissioning, and process optimization of this SwissNano 4.

  • 6 axes
  • Main and counter spindles
  • C-axis
  • Part ejector
  • High pressure
  • Kraft und Bauer fire-extinguishing system
  • Tryton 107 Watch magazine
