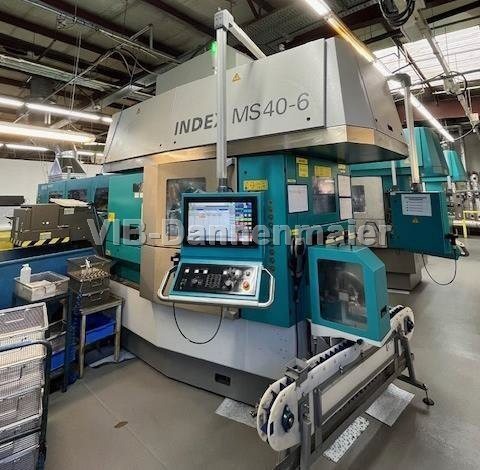

Index MS 40-6

  • Producer
    INDEX
  • Model
    MS 40-6
  • Diameter
    40 mm
  • Year
    2019
  • Condition
    good
  • Price
    Request price

Important data at a glance

Description

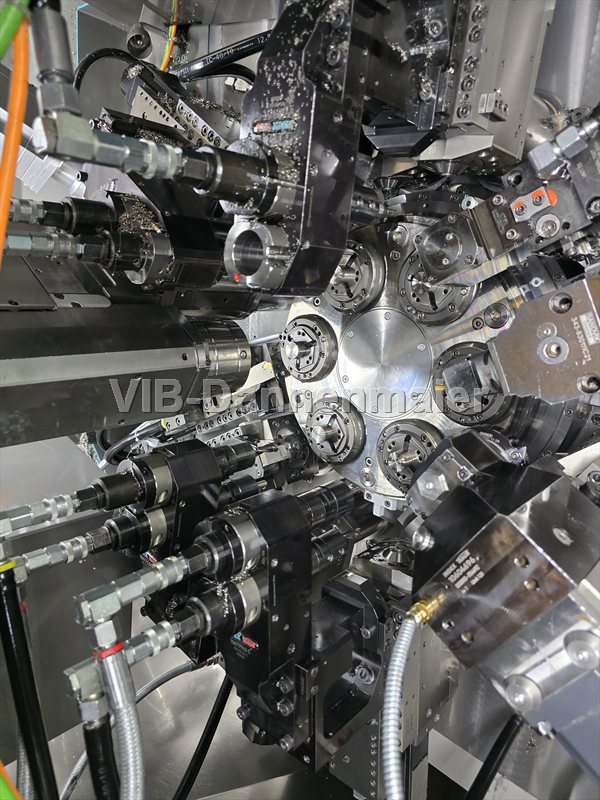

The used INDEX MS40-6 multi-spindle turning machine sets standards in the highly productive series production of parts with a bar diameter of up to 40 mm. Six fluid-cooled motor spindles with up to 7,000 rpm, up to two swiveling synchronous spindles, and a maximum of 12 tool carriers in XYZ offer unlimited flexibility—from turning to milling to gear cutting. Hydrostatically mounted Z axes, free chip removal, and an open-front work area minimize setup times while providing optimum accessibility. The ideal investment for production managers: maximum quantities, top precision, and low follow-up costs with proven INDEX technology made in Germany.

  • 6-spindle
  • Double NCU
  • Slide unit 1.1: X-axis and Z-axis NC-controlled
  • Slide unit 1.2: X-axis and Z-axis NC-controlled
  • Slide unit 2.1: X-axis and Z-axis NC-controlled
  • Slide unit 2.2: X-axis and Z-axis NC-controlled
  • Slide unit 3.1: X-axis and Z-axis NC-controlled
  • Slide unit 3.2: X-axis and Z-axis NC-controlled
  • Slide unit 4.1: X-axis, Y-axis, and Z-axis NC-controlled. Y-axis adjustment range +/- 21 mm
  • Slide unit 4.2: X-axis and Z-axis NC-controlled
  • Slide unit 5.1: X-axis and Z-axis NC-controlled
  • Slide unit 5.2: X-axis and Z-axis NC-controlled
  • Slide unit 6.1: Swivel axis and Z-axis NC-controlled
  • Slide unit 6.2: X-axis and Z-axis NC-controlled
  • Slide unit 6.3: X-axis and Z-axis rigid
  • Synchronization device position 6.1
  • Electronic preparation for two additional drives at positions 1, 2, 3
  • Electronic preparation for two additional drives at positions 4, 5, 6
  • Artis tool monitoring
  • High pressure 80 bar

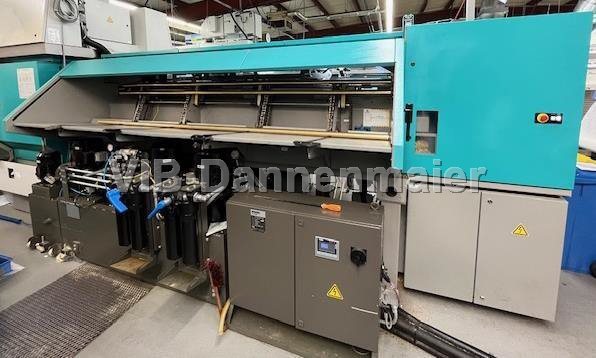

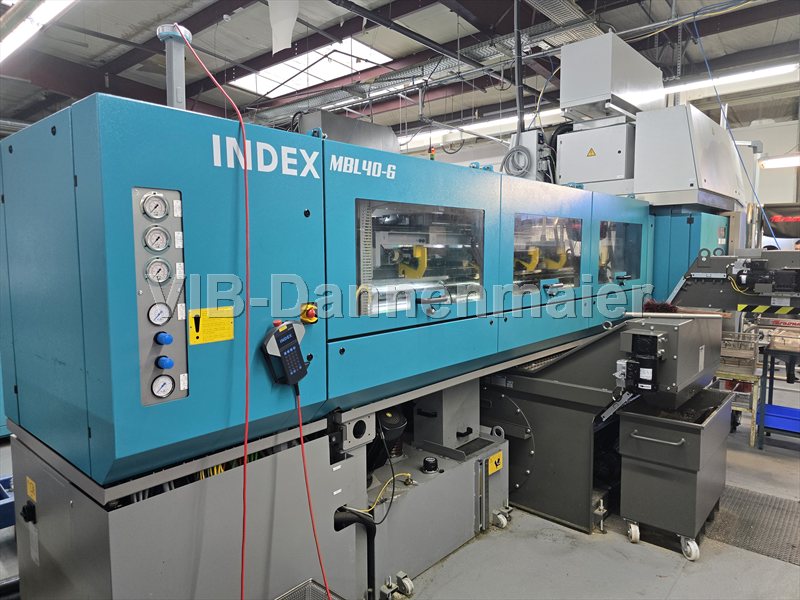

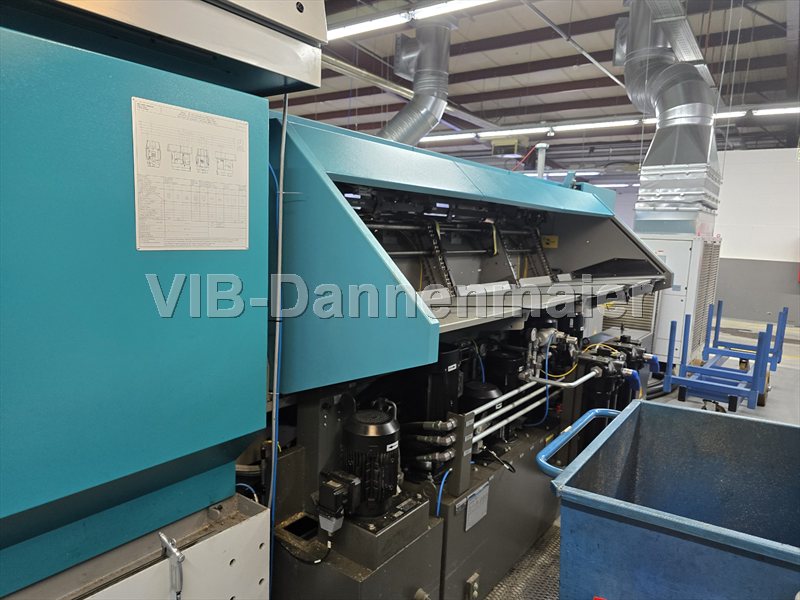

  • Index MBL 40-6 - Loading magazine for 3 m bars
