Index MS 40-6

  • Producer
    INDEX
  • Model
    MS 40-6
  • Durchmesser
    40 mm
  • Year
    2022
  • Condition
    very good
  • Price
    Request price

Important data at a glance

Description

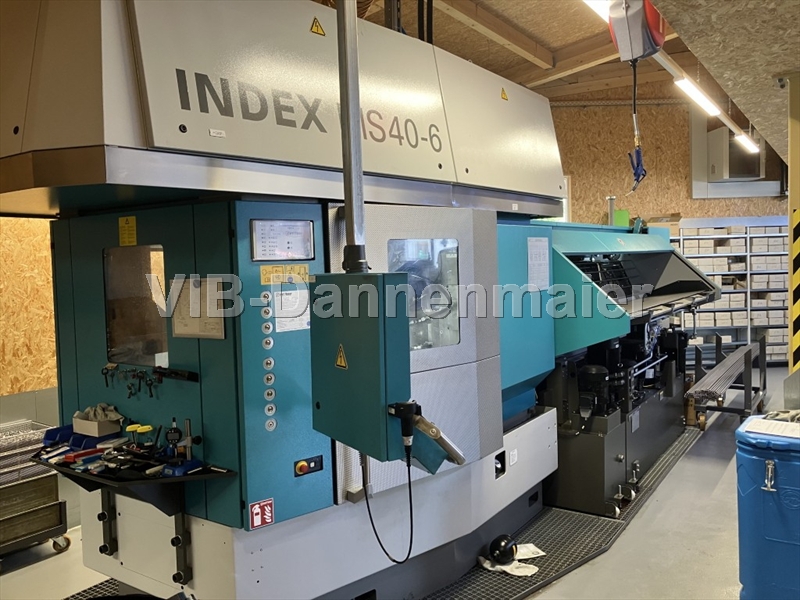

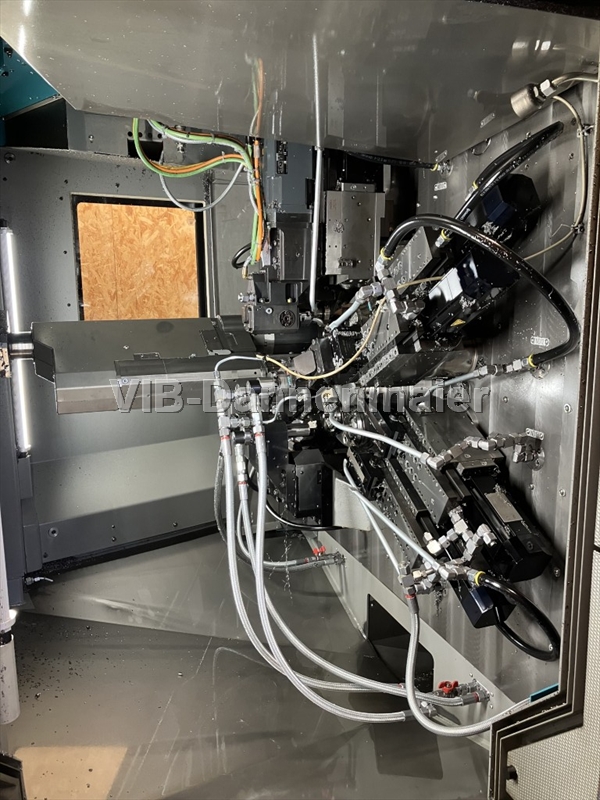

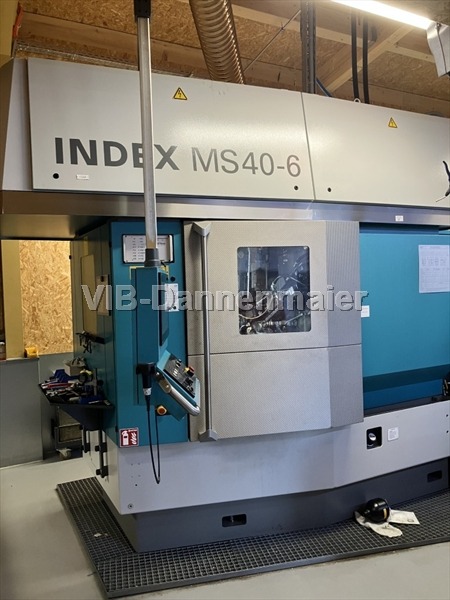

The used INDEX MS40-6 CNC multi-spindle lathe from VIB is designed for bar diameters up to 40 mm and maximum throughput in series production. Six individually driven motor spindles, up to twelve tool holders, and the Siemens S840D sl enable the parallel machining of complex precision parts in a single pass. VIB has been supporting projects involving INDEX multi-spindle machines for many years—from application-specific configuration and setup concepts to process optimization—thereby unlocking the full potential of the MS40-6 in automotive, hydraulic, and mechanical engineering applications.

  • 6-spindle machine
  • Dual NCU
  • NC option: synchronous spindle/polygon turning
  • Part discharge via chute in spindle position 6
  • Workpiece conveyor belt in spindle position 6
  • Hinged belt chip conveyor (cross conveyor)

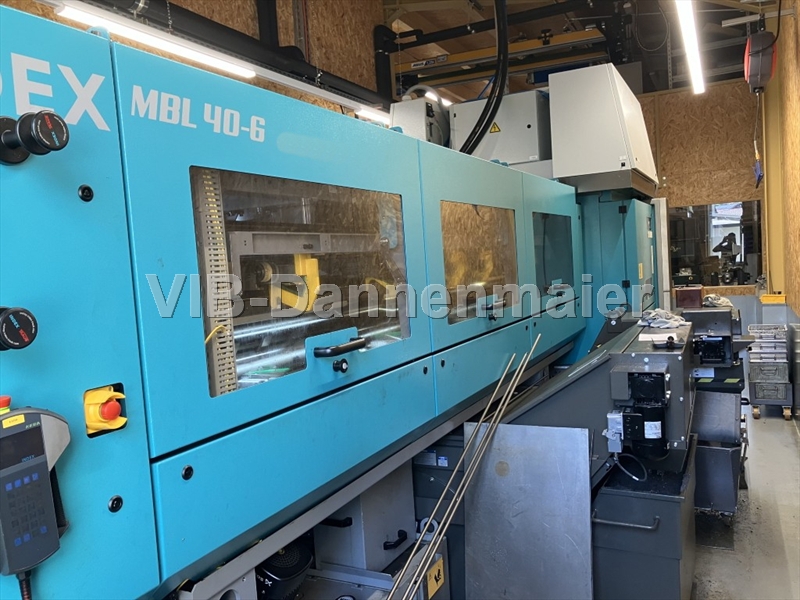

  • INDEX MBL 40-6/3300 loading magazine
